2010 Ski-Doo Expedition SE 1200

* Frame: REV -XU
* Skis: Pilot 6.9
* Seating: 2-Up modular w/ underseat storage
* Handlebar: Tilt steering, 4 positions / Painted steel / J-hooks / Riser block (205 mm / 8 in ) / Mountain strap
* Backrest: Standard
* Electric start: Standard
* Reverse: Mechanical
* Heated throttle lever: Standard
* Heated grips: Standard
* Speedometer: Standard
* Tachometer: Standard
* Fuel gauge: Standard
* Temperature gauge: Standard
* Mirrors: Standard
* Windshield: High
* Carbide runner: Standard
* Hitch: Tongue type

Package Highlights* Rotax® 1200 4-TEC® engine choice
* REV-XU™ platform
* Synchromesh transmission w/ reverse (2-1-N-R)
* Winch (680 kg / 1500 lb capacity)
* Hitch
* Skid plate and heavy-duty front bumper
* Heated GPS holder
* 12V power outlet
* Rack and cargo box (75 liters / 20 gal)
* 30 amp/hr heavy-duty battery
* Multi-function digital gauge w/display
* Additional rear 12V power outlet
* Modular two-up seat w/ underseat storage
* Adjustable heated passenger grips
* Handlebars with mountain strap, J-hooks and tilt steering
* Temperature gauge

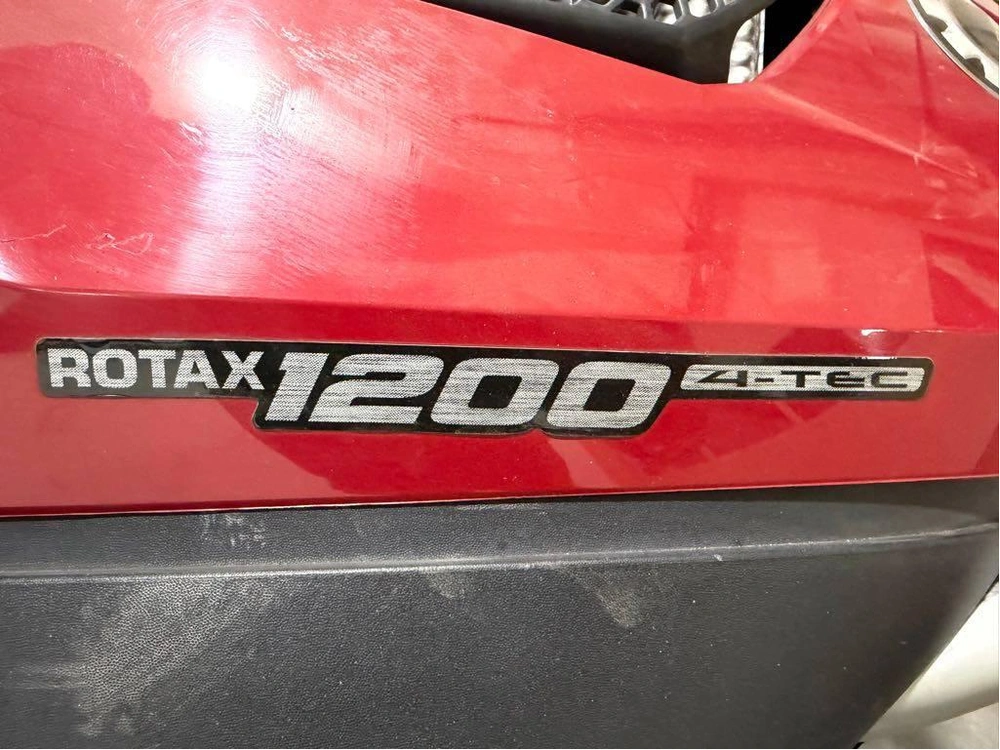

Engine* Engine: Rotax 1200 4-TEC
* Engine details: Liquid-cooled, four-stroke D.O.H.C. dry sump
* Cylinders: 3
* Displacement: 1170.7 cc / 46.9 in³
* Bore: 91 mm / 3.6 in
* Stroke: 60 mm / 2.4 in
* Max. engine speed: 7800 RPM
* Carburetion: EFI
* Fuel type: Regular unleaded recommended
* Min. octane: 87
* Fuel tank: 45 liters / 12 gallons
* Engine oil capacity: 3.5 liters / 3.7 quarts
* Exhaust system: Single head-pipe, baffle muffler

Powertrain* Drive clutch type: TRA™ IV
* Driven clutch type: QRS
* Engagement: 2500 RPM
* Drive sprocket number of teeth: 8
* Drive sprocket diameter: 183 mm / 7.2 in
* Brake system: Hydraulic

Suspension* Front suspension: Dual A-arm
* Front shock: Hydraulic
* Front suspension max. travel: 210 mm / 8.26 in
* Rear suspension: RCG-A
* Center shock: Hydraulic
* Rear shock: HPG™
* Rear suspension max. travel: 340 mm 13.4 in

Dimensions* Vehicle overall length: 3923 mm / 154.5 in
* Vehicle overall width: 1217 mm / 47.9 in
* Vehicle overall height: 1330 mm / 52.3 in
* Official dry weight: 332 kg / 732 lb
* Ski stance: 975 to 1018 mm / 38.4 to 40.1 in
* Ski width: 161 mm / 6.33 in
* Track nominal width: 500 mm / 20 in
* Track nominal length: 3968 mm / 156 in
* Track profile height: 31.8 mm / 1.25 in
